Single port laparoscopic - surgery Glove Port

Single Port Access, Glove Port

Glove Port holds back incisions edges to insert operative instruments and endoscope into the body through
the cook caps. edges of the incisions to insert the operative instruments and the endoscope into the body through cook caps.

Single port laparoscopic - surgery Glove Port
open
Able to open during operation

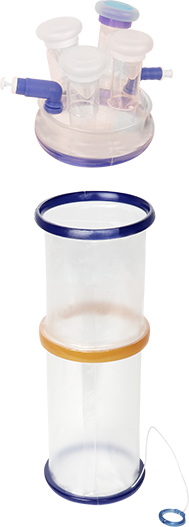

Separation of wound retractor and port
    • Cook Cap
    • Cook Cap
    • Various sizes of instruments can be inserted such as Endoscope and Endo GIA.
    • Inlet Valve
    • Inlet Valve
    • Easy to inject the Co2 gas through inlet valve
    • Outlet Valve
    • Outlet Valve
    • It removes the smoke during the operation.
    • Remover Ring
    • Sheet
    • It is made of polyurethane film. Polyurethane is more sturdy and high elasticity than silicon.
    • Control Ring
    • Control Ring
    • Can adjust the length of sheet and could be rolled up into the incision and can make various instrument inserted into the body
    • Sheet
    • Remover Ring
    • Easily remove "Inner ring" out of body by pulling out the ring
    • Inner ring
    • Inner Ring
    • Can fix this product by contacting tightly on the inner abdominal walls

Characteristics

Minimum Incision

Allows minimal scar surgery as well as decreased post-operative pain, fast recovery and return to everyday activity.

Polyurethane

Polyurethane is sturdier and more elastic so our Glove Port is very resistant to tears.

Convenient Removal

Thanks to both the removal line and the removal ring Glove Port can easily be removed after the operation.

Separate Inlet & Outlet

CO2 can easily be pumped in to remove smoke during operation.

Port Caps High Elasticity

A variety of instrument sizes can be inserted into the caps (3mm~12mm)

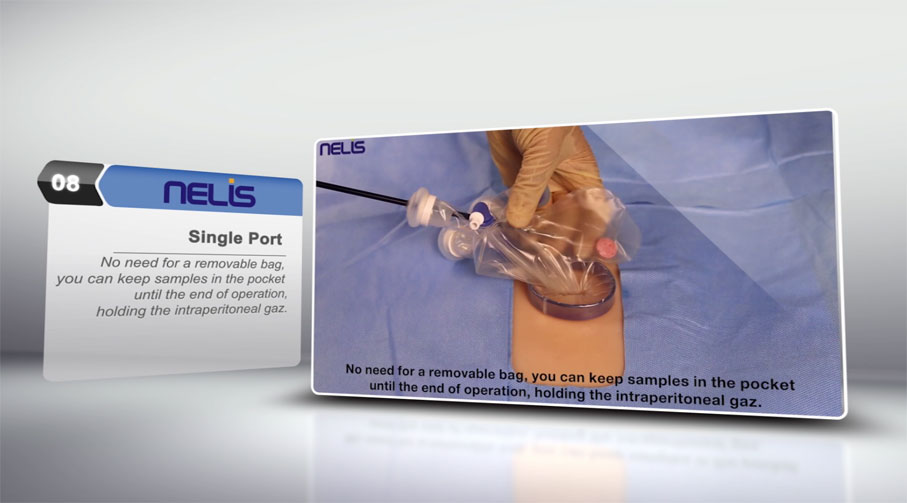

video bg player
product1

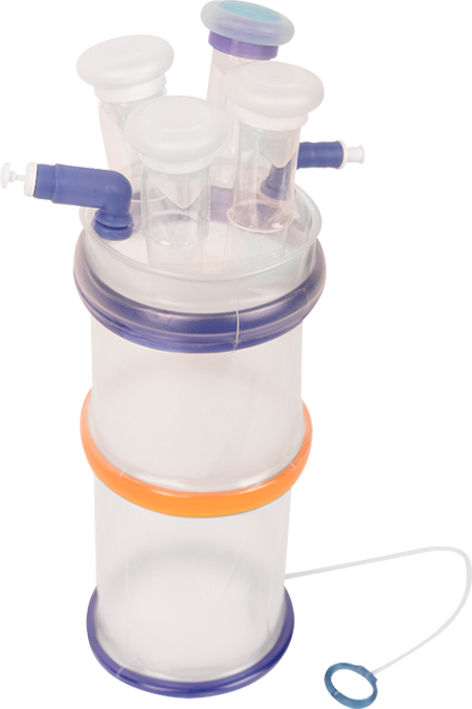

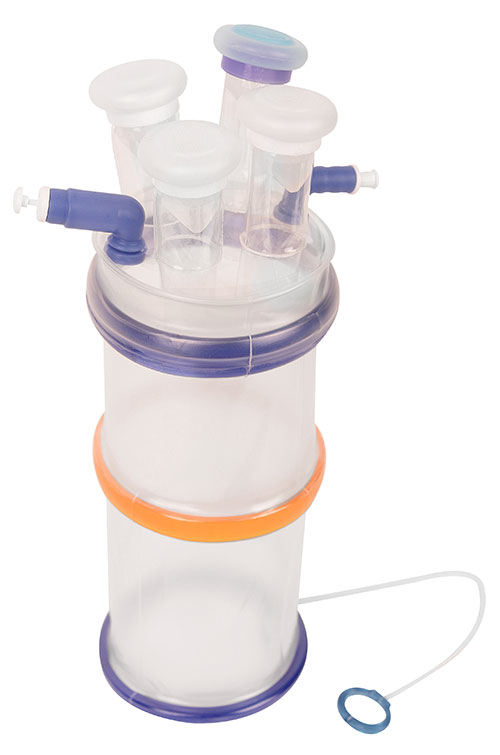

Glove Port Original type

  • 1) Only 2-2.5cm incision makes small scar
  • 2) Polyurethane wound retractor is tear resistant and softer than silicone
  • 3) Separate gas inlet and outlet
  • 4) High elasticity port caps
  • 5) Various port sizes: 3mm~15mm
  • 6) 15mm morcellator can be used
  • 7) Transparent ports allow sergeant to see inserted instruments
  • 8) Pocket can hold specimens
  • 9) Soft movement can make surgery easy
product1

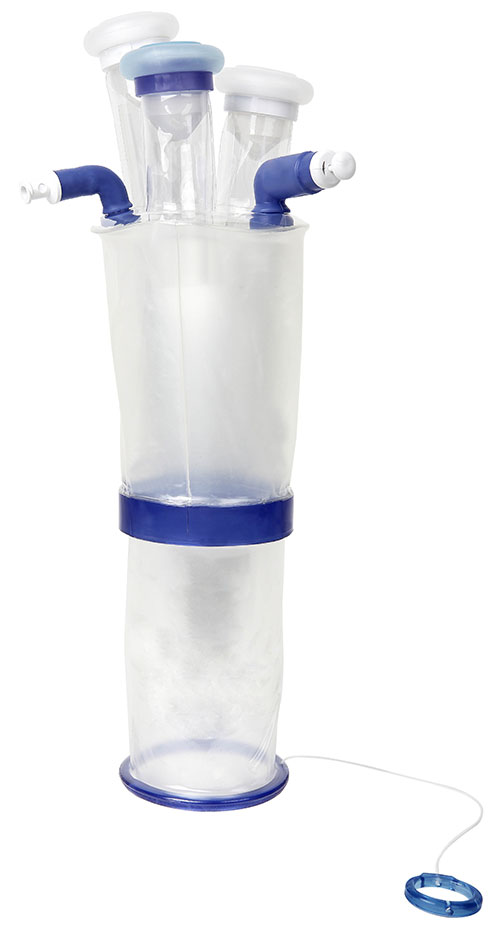

Glove port H - Type

  • 1) Easy to insert into small incision
  • 2) Each port can move in independently
  • 3) Rolling the sheet helps to open incision easily
  • 4) Soft movement can make surgery easy
  • 5) Only 2-2.5cm incision makes small scar dependently
  • 6) Polyurethane wound retractor-not torn easily and softer than silicone
  • 7) Separation gas inlet and outlet
  • 8) Various size of port 3mm-15mm-reduction of collision between instruments
  • 9) Insertion can be seen through transparent port part
  • 10) Pocket can be hold the specimen
  • 11) Powerful retraction
product1

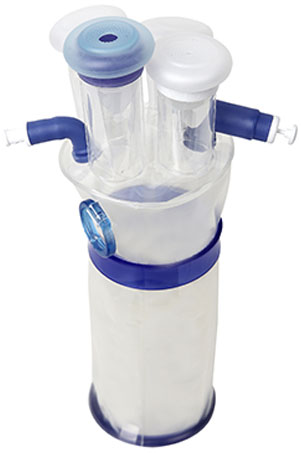

Glove port A - Type

  • 1) Can be opened during operation
  • 2) Can be used in robotic surgery
  • 3) Each port can move independently
  • 4) Rolling the sheet helps to open incision easily
  • 5) Soft movement can make surgery easy
  • 6) Only 2-2.5cm incision makes small scar dependently
  • 7) Polyurethane wound retractor-not torn easily and softer than silicone
  • 8) Separation gas inlet and outlet
  • 9) High-elastic port cap
  • 10) Various size of port 3mm-15mm-reduction of collision between instruments
  • 11) Insertion can be seen through transparent port part

Applications

Operation Model no.
Appendectomy 440,431,431-AS,431-AM
Gall Bladder 431,431-AS,440,440-AS
Uterine Myoma 330,431,431-AS,330-AS
Hysterectomy 422,422-AS,422-AM
Hysteromyomectomy with morcellator P422-15,422-AS-15,422-AM-15
Cholecystectomy 440,431,431-AS,431-AM
Ovariotomy 330,431,330-AS,431-AS
Urinary Tract stone Removal P431,431-AS,431-AM
Endometriosis P321,321-AS,330-AS
Paediatric surgery 431-AT,440-AT,4220-AT
Urology 431,422,431-AS,431-AM
Colorectal surgery 431-AS,422-AS,431-AM,422-AM
Gastrectomy 422-AM,431-AM

*OTHER: Robot surgery, Ectopic pregnancy, Fibroids, Hepatectomy and so on
